NEW 2024 MODEL on the way

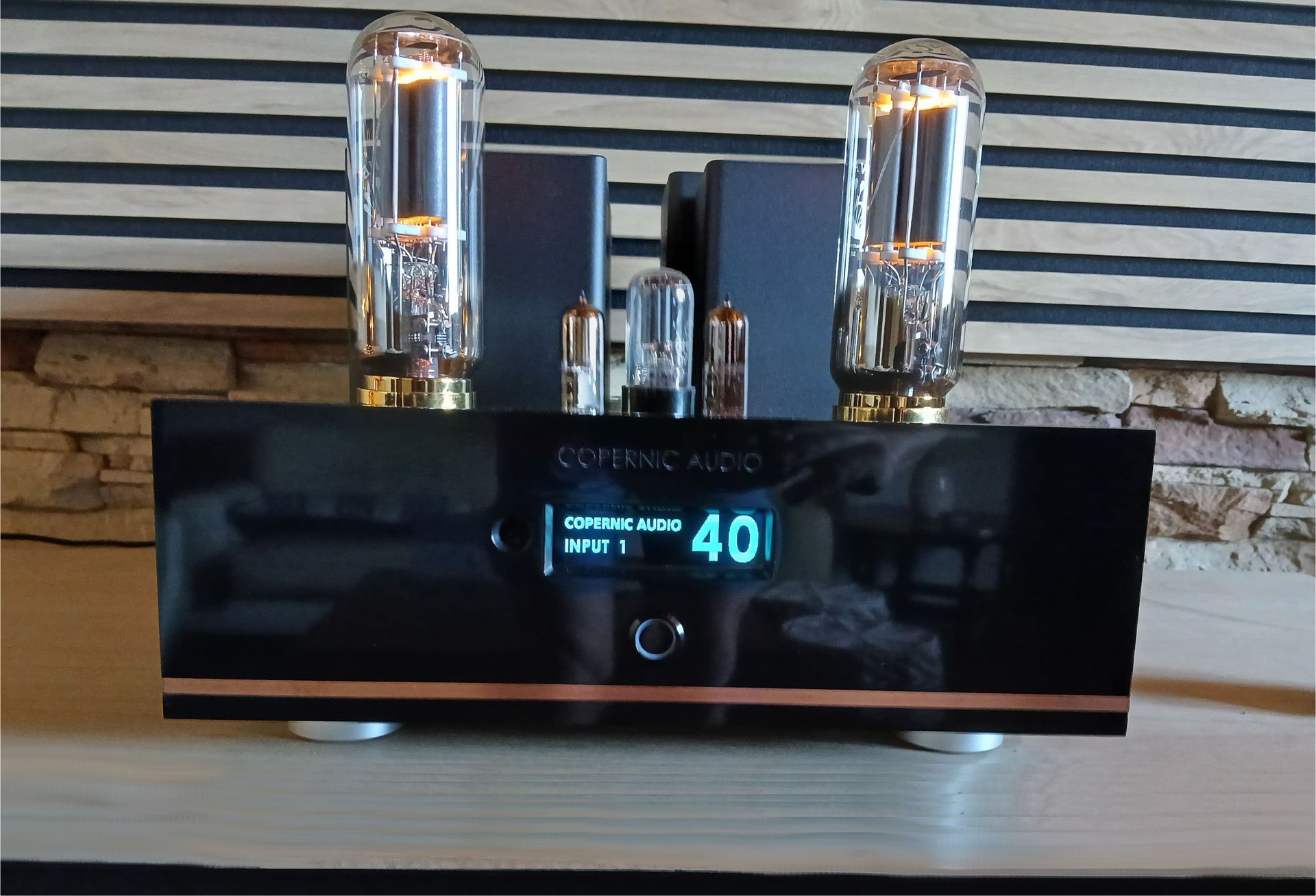

Copernic Audio IT-211  Amplifier.

Class A. 22w + 22w.

Zero negative feedback

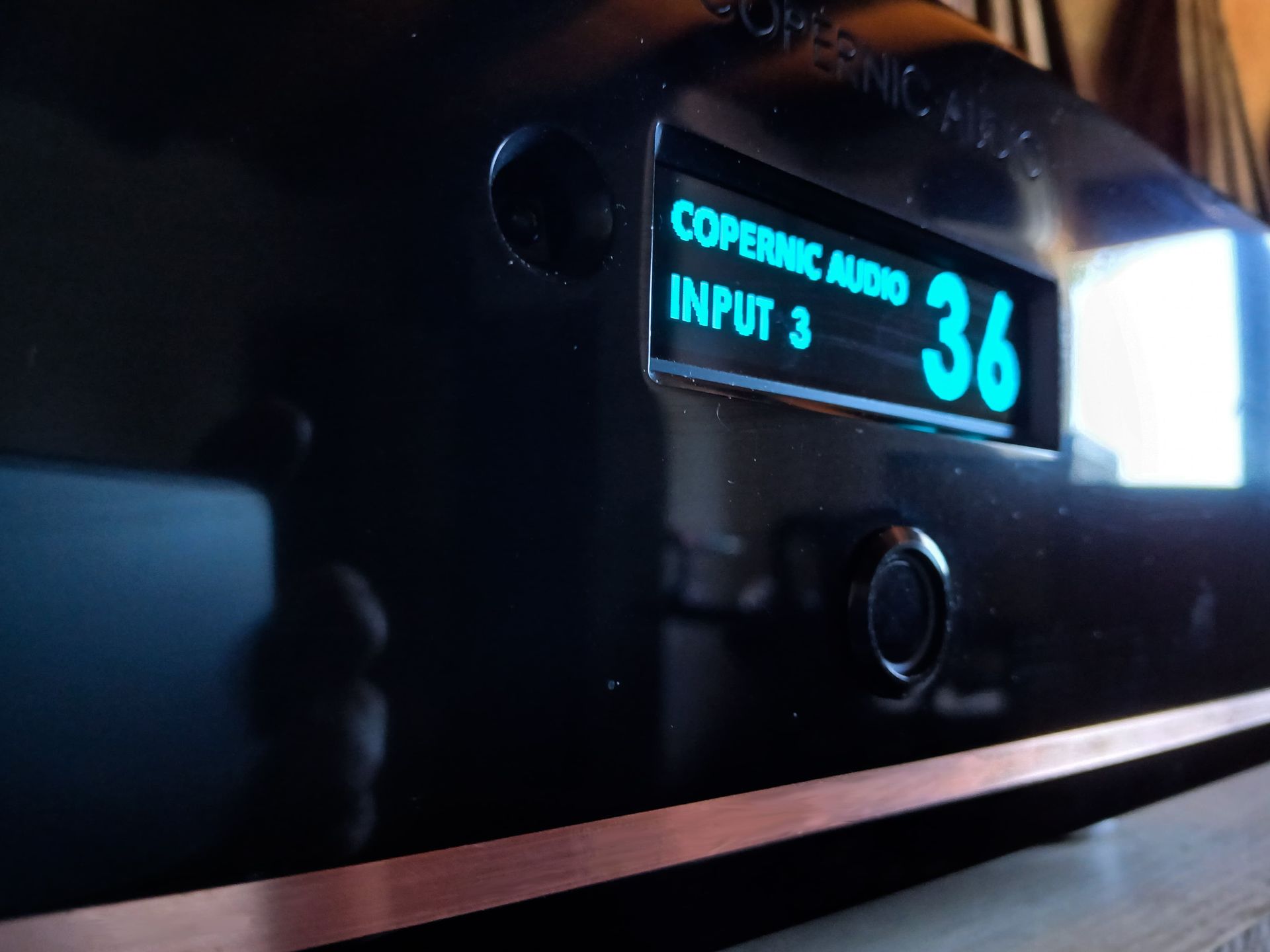

Full remote control, volume 60 steps, 4 RCA  Imput

High inductance filtering design with more than 50 Henries.

Double PSU transformer High Voltage and High current, for absolute silent.

Output transformers amorphous  core. it is designed to a high impedance 14k with 14 multi-layer compartment structure.

Coupled system:  Paper in OIl capacitors coupling,  matching perfectly with Out Put Transformer.

Power before clipping: 22w 1khz 3.8% THD

Frequency response: 12hz- 40khz - 3 db. 20hz - 20khz 0 db Output residual noise: <1mV

Input sensitivity 0.3V

Valves: 211 x 2, 6e5p x 2

Inputs: 1 RCA

single output: 4Ω 6Ω 8Ω

Measurements: W450 × H223 × D350mm

Weight 34kg without packaging

for more information follow us on Facebook or do not hesitate to contact with us.

.
